Compression Force Sensors



Compression Force Sensors, low profile







Data sheet DK0

DK0

Smallest compression force load cells for relativey large forces and minimun space requirement.

Technical Data

Nominal force (Fnom): 20 - 50 kN
Absolute max. force based on Fnorm:

270 - 110 %

Combined error: 1,0 %
Diameter: 22,4 mm
Material: Stainless steel



Druckkraftaufnehmer, Lastaufnehmer, Messdose, DK2M



Data sheet DK2M

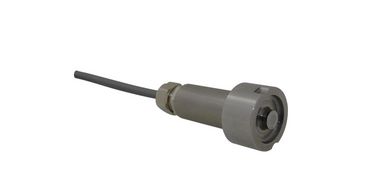

DK2M

Small compression force load cells with radial cable outlet.



Technical Data

Nominal force (Fnom): 0,25 - 3 kN
Absolute max. force based on Fnorm:

250 %

Combined error: 0,5 %
Diameter: 20 mm
Material: Stainless steel



Compression Force Sensors, low profile

Data sheet DK2



Application example

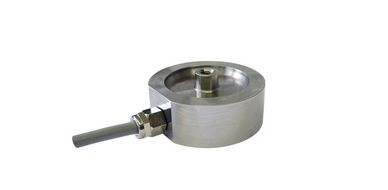

DK2

Space saving compression force load cells based on the membrane principle for smaller forces.

Technical Data

Nominal force (Fnom): 0,2 - 10 kN
Absolute max. force based on Fnorm:

250 - 1000 %

Combined error: 0,5 %
Diameter: 55 mm
Material: Stainless steel



Compression Force Sensor

Data sheet DK3

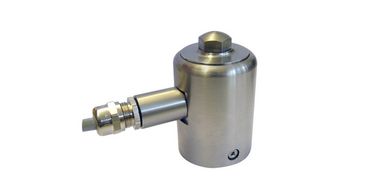

DK3

Rugged compression force load cell of the canister style for applications in harsh environnements.

Technical Data

Nominal force (Fnom): 1 - 50 kN
Combined error:

0,5 %

Diameter: 40 mm
Height: 60 mm
Material: Stainless steel



Compression Force Sensors





Data sheet DK4

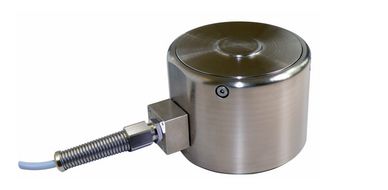

DK4

Compact load cell for large forces based on the compression force principle.

Technical Data

Nominal force (Fnom): 200 - 1000 kN
Combined error:

1,0 %

Diameter: 115 mm
Height: 90 mm
Material: Stainless steel



Compression Force Sensors





Data sheet DK5

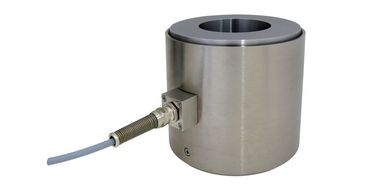

DK5

Rugged load cell for harsh environments for forces in the field of Mega Newton.

Technical Data

Nominal force (Fnom): 1 - 2 MN
Combined error:

1,0 %

Diameter: 154 mm
Height: 140 mm
Material: Stainless steel



3 axis measurement





Data sheet XYZ


XYZ

Simultaneous acquisition of forces from three directions



Technical Data

Nominal force (Fnom): X and Y direction
3,25 to 80 kN

Z direction
22,5 to 400 kN

Accuracy:

0,3 %

Diameter: 112 mm
Height: 82 mm
Material: Edelstahl



Compression Force Sensors



Data sheet

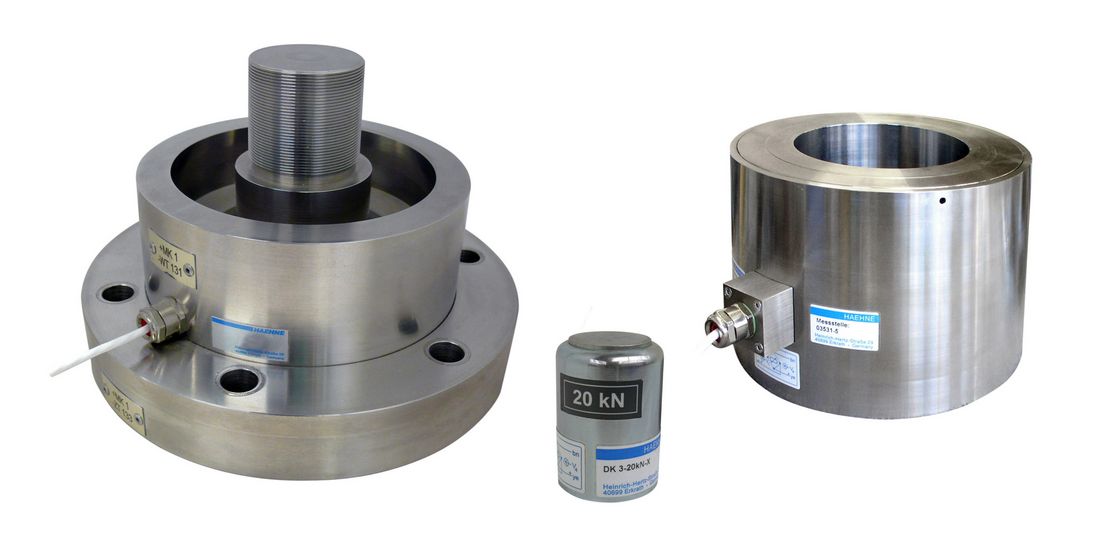

 Special purpose solutions and extended spectrum of options
