Radial Force Sensors

Radial force sensor, Load Cell

Data sheet BZA



Application example

BZA

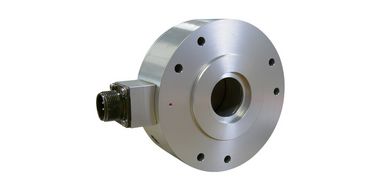

User-friendly aluminium sensor for a broad range of applications.



Technical Data

Nominal force (Fnom): 100 - 5000 N
Shaft diameter: 15 - 60 mm
Max. operating force based on Fnom: 160 %
Absolute max. force based on Fnom: 700 - 1000 %
Combined error: 0,5%



Web Tension Sensor, Measuring Bearing, Load Cell

Data sheet BZN



Application example

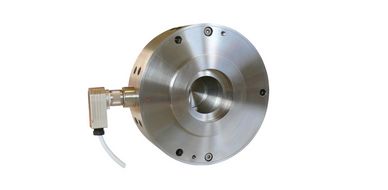

BZN

Rugged stainless steel sensor for the highest performance requirements and aggressive media.



Technical Data

Nominal force (Fnom): 100 - 4000 N
Shaft diameter: 15 - 40 mm
Max. operating force based on Fnom: 160 %
Absolute max. force based on Fnom: 1000 %
Combined error:

0,5 %



Web Tension Sensor, Measuring Bearing, Load Cell

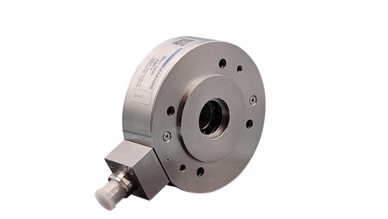

Data sheet BZE4



Application example

BZE4 - Solutions for large forces

Depending on your requirement we offer solutions for large shaft diameters and forces up to 15kN.



Technical Data

Nominal force (Fnom): 1 - 15 kN
Shaft diameter: 40 - 70 mm
Max. operating force based on Fnom: 160 %
Absolute max. force based on Fnom: 1000 %

Combined error:

0,5 %



Web Tension Sensor, Measuring Bearing, Two Axis

Data sheet XYR

XYR

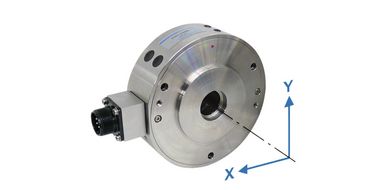

Dual axis web tension sensor for changing web angle geometries.



Technical Data

Nominal force (Fnom): 250 - 2000 N
Shaft diameter: 15, 17 mm
Max. operating force based on Fnom: 160 %
Absolute max. force based on Fnom: 1000 %
Combined error:

0,5 %



Web Tension Measurement, Measuring Bearing

Data sheet LBZR





LBZR

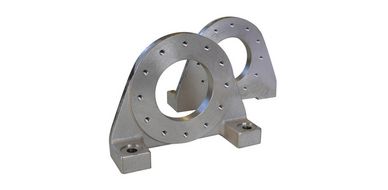

Bearing support blocks for force sensors of the BZA/BZN-series in 4 sizes.

12 drilled holes for sensor mounting



Web Tension Sensor, Measuring Bearing

Data sheet BZL



Application example

BZL

Pillow block with integrated web tension measuring function and selectable measuring direction.



Technical Data

Nominal force (Fnom): 100 - 1000 N
Shaft diameter: 12 - 17 mm
Max. operating force based on Fnom: 160 %
Absolute max. force based on Fnom: 1000 %
Combined error:

0,5 %

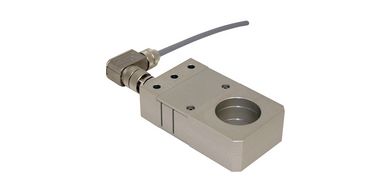

Kraftsensor BZL-A

Data sheet BZL-A

BZL-A

Force sensor for machines with limited installation space made of high-strength aluminum.



Technical Data

Nominal force (Fnom): 125 - 500N
Shaft diameter: 15 mm
Max. operating force based on Fnom: 160 %
Absolute max. force based on Fnom: 800 %
Combined error:

<0,3 %



Cover support, Pillow Block

Data sheet



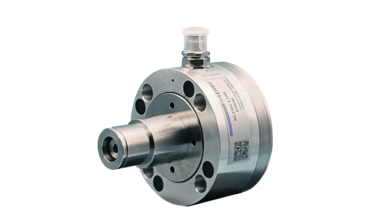

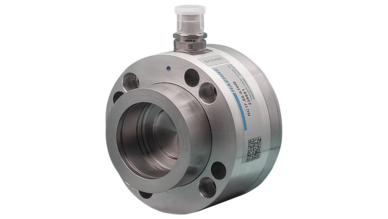

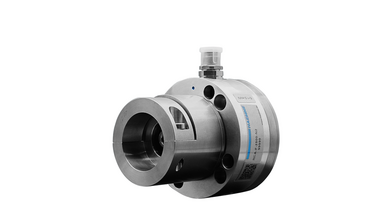

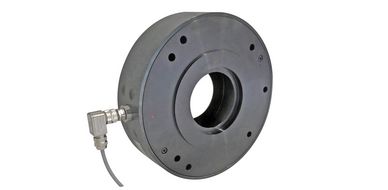

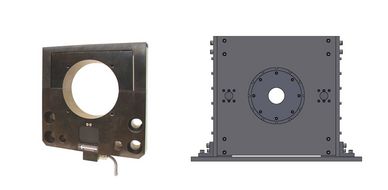

Special purpose solutions and extended spectrum of options
